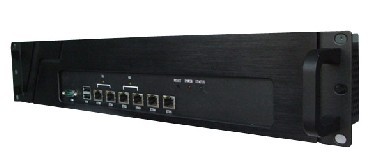

机箱 2U，19”标准上架机箱, SGCC箱体
处理器
Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core, Celeron Dual-Core, Celeron
processor in LGA775 package
FSB
1333MHz
芯片组
Intel G41 chipset+Intel ICH7R chipset
内存
2 DDR3 800/1066 DIMM slots (240pin / 1.5V)
Supports the maximum of 4GB Unbuffered DIMM
网络
SupportsGigabit LAN by Intel 82574L Gb Ethernet controller
Supports Ethernet bypass function with Programming Relay (4 ports)
SATA
4 SATA 3Gb/s ports by Intel ICH7R
IDE
1 IDE port by Intel ICH7R
Supports Ultra DMA 66/100, PIO, Bus Master operation mode
CF
1 CompactFlash socket by Intel ICH7R
I/O接口
6 Gigabit LAN ports
2 USB 2.0 ports
1 serial port
Onboard Connectors
1 USB 2.0 pinheader (2 ports)
1 serial port connector
1 SMBus connector
1 SPI Flash ROM pinheader (for debugging)
1 chassis intrusion connector
1 TPM connector
1 VGA port
1 keyboard/mouse connector
扩展槽
1 PCIE x4 Golden Finger (for MS-95W6 Riser Card)
1 32-bit/33MHz PCI slot |
